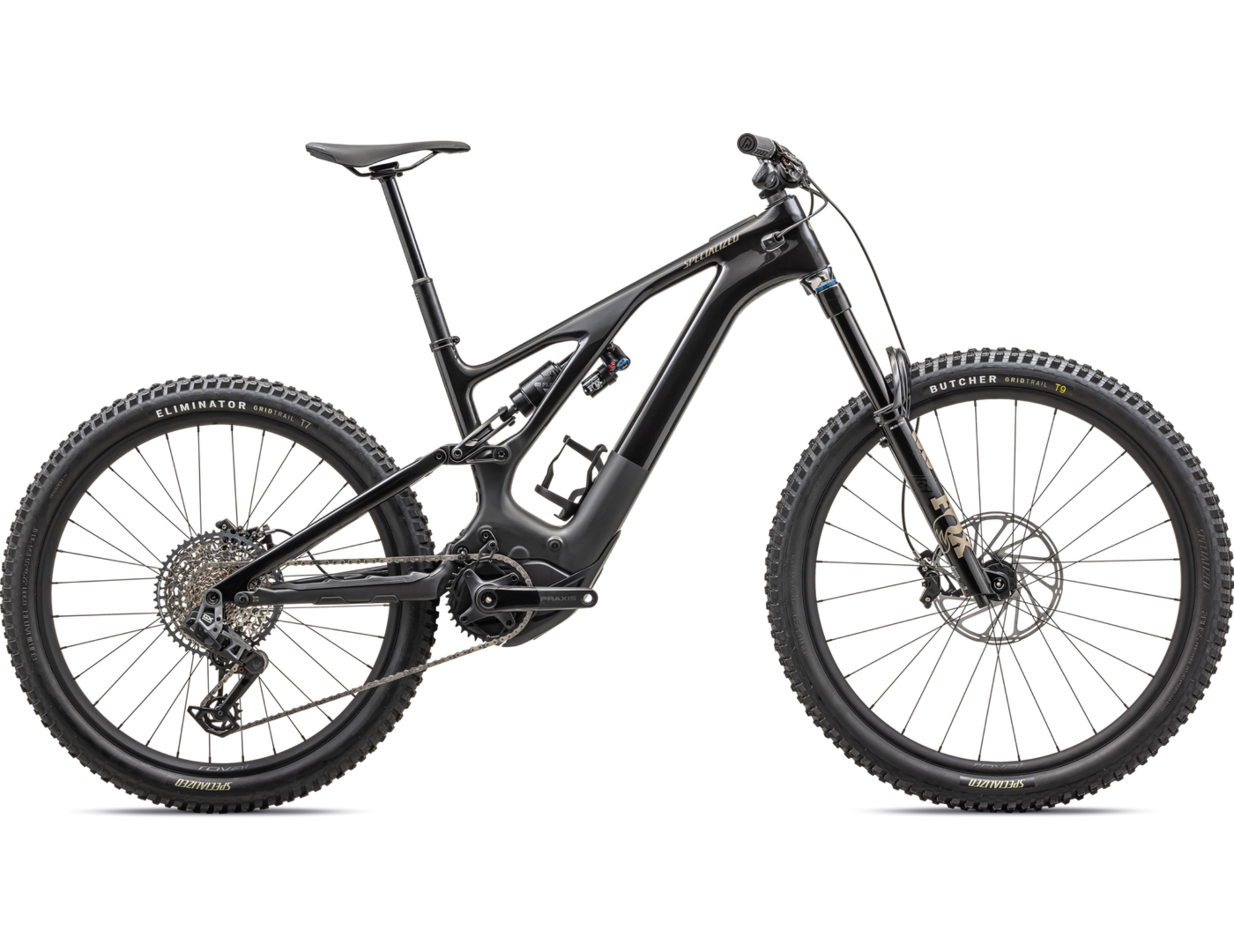

Specialized Turbo Levo Expert T-Type

Specialized Turbo Levo Expert T-Type
  • Color: Gloss/Satin Obsidian/Gloss Taupe
  • Color: Satin Harvest Gold/Obsidian
$7,999.99 - $10,000.00
$10,000.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Order now and pick up in-store for free

Details

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.

- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.

- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.

- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Sizes:
S1S2S3S4S5S6
Crank Length160mm 160mm160mm160mm160mm160mm
Handlebar Width780mm 780mm780mm780mm780mm780mm
Stem Length40mm 40mm40mm40mm50mm50mm
Saddle Width155mm 155mm143mm143mm143mm143mm
Seatpost Length120mm 150mm150mm180mm210mm210mm
Stack605mm 617mm626mm635mm644mm653mm
Reach412mm 432mm452mm477mm502mm532mm
Headtube Length105mm 105mm115mm125mm135mm145mm
Headtube Angle64.5° 64.5°64.5°64.5°64.5°64.5°
BB Height352mm 350mm350mm350mm350mm350mm
BB Drop25mm 27mm27mm27mm27mm27mm
Trail130mm 130mm130mm130mm130mm130mm
Fork Length (full)557mm 567mm567mm567mm567mm567mm
Fork Rake/Offset44mm 44mm44mm44mm44mm44mm
Front Center738mm 760mm784mm814mm843mm878mm
Chainstay Length442mm 442mm442mm442mm442mm442mm
Wheelbase1179mm 1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm 776mm783mm787mm788mm790mm
Seat Tube Length380mm 390mm405mm425mm445mm465mm
Seat Tube Angle78° 77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm 220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm 80mm80mm80mm80mm80mm
Sizes:
SizeInch
S14'11" - 5'3"
S25'2" - 5'8"
S35'5" - 5'11"
S45'8" - 6'2"
S55'10" - 6'4"
S66'2" - 6'8"

Specs

Motor Specialized 2.2 Custom Rx Trail Tuned Motor
Pedals Sold Separately
Battery Specialized M3-700, Integrated battery, 700Wh
Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Controller/Display Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Fork Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset
Stem Alloy Trail Stem, 35mm bar bore
Chain SRAM GX Eagle Transmission Flattop Chain
Frame FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Tires Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes Front: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor
Rear: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200 mm rotor
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Wheels Front Wheel: Traverse 29
Rear Wheel: Traverse 27.5
Crankset Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Seatpost OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Shifters SRAM AXS POD Controller
Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp
Rear Derailleur SRAM GX Eagle Transmission Derailleur
Cassette/Freewheel SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chainrings New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Rear Shock S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm
Tape/Grips Deity Grips
Accessories & Extras SWAT CC steerer tube integrated tool with chain tool and link

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss/Satin Obsidian/Gloss Taupe / S2 / 29-inch front / 27.5-inch rear 196625127861 95223-3602 210000501977
Gloss/Satin Obsidian/Gloss Taupe / S4 / 29-inch front / 27.5-inch rear 196625127960 95223-3604 210000510546
Gloss/Satin Obsidian/Gloss Taupe / S6 / 29-inch front / 27.5-inch rear 196625128004 95223-3606
Satin Harvest Gold/Obsidian / S4 / 29-inch front / 27.5-inch rear 196625127878 95223-3704
Satin Harvest Gold/Obsidian / S3 / 29-inch front / 27.5-inch rear 196625127847 95223-3703
Gloss/Satin Obsidian/Gloss Taupe / S3 / 29-inch front / 27.5-inch rear 196625127953 95223-3603
Satin Harvest Gold/Obsidian / S5 / 29-inch front / 27.5-inch rear 196625127939 95223-3705
Gloss/Satin Obsidian/Gloss Taupe / S5 / 29-inch front / 27.5-inch rear 196625128011 95223-3605
Satin Harvest Gold/Obsidian / S2 / 29-inch front / 27.5-inch rear 196625127991 95223-3702
